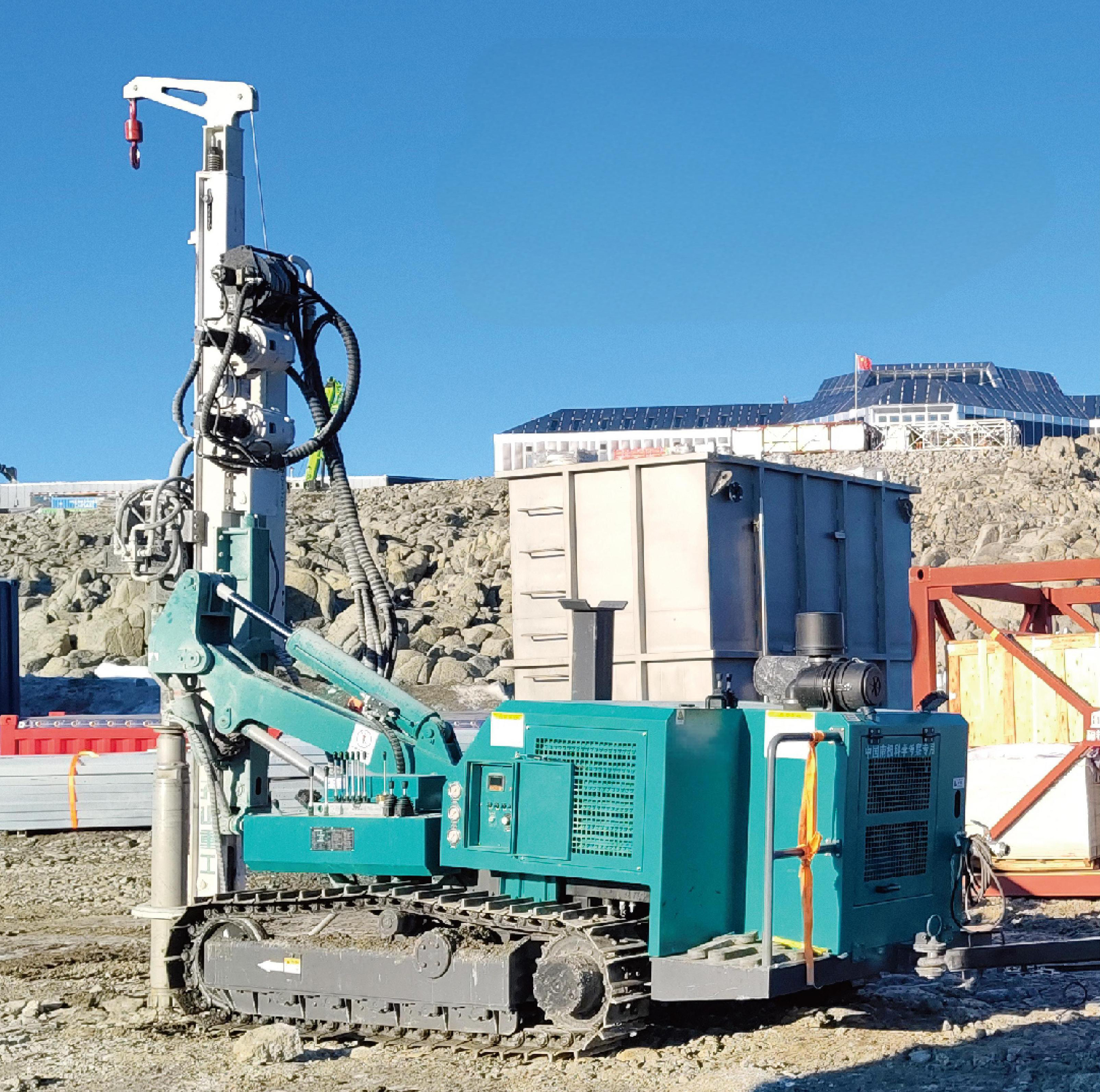

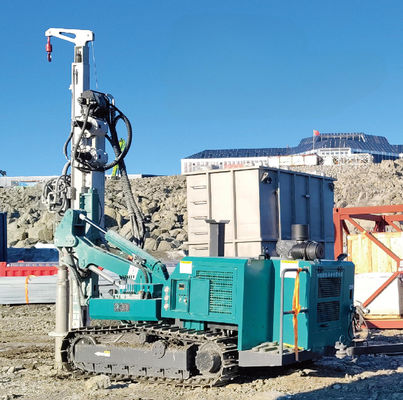

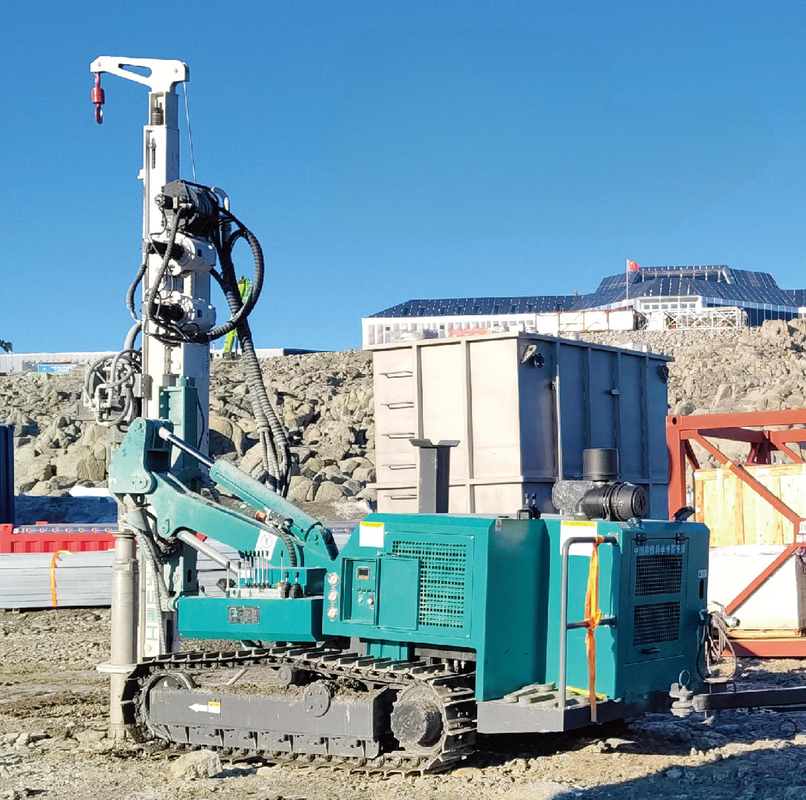

| प्रमुखता देना: | 115-500mm Hole Diameter Micro Pile Drilling Rig,76/89/102/114 Drilling Rod Specification Hydraulic Crawler Drill,4/5/6/8/10/12 Hammer Engineering Drilling Machine |
||
|---|---|---|---|
| Specification | Value |
|---|---|
| Hole Diameter | 115-500mm |
| Drilling Rod Specification | 76/89/102/114 |
| Hammer | 4"/5"/6"/8"/10"/12" |
| Crawler Outer Width | 2300mm |
| Chassis Levelling Angle | ±13° |
| Climbing Ability | <25° |
| Travel Speed | 3km/h |
| Standard Equipment | Upper operation, foot pedal and drill pipe holder |
| Propulsion Length | 4100mm |
| Advancing Compensation | 1260mm |
| Propulsion Speed | 0.5m/s |
| Propulsion | 1.2T |
| Maximum Lifting Force | 4T |
| Propulsion Beam Front Swing Angle | ± 30° |
| Power Head Rated Speed | 40/80r/min two-stage |
| Maximum Rotation Torque | 4000/8500Nm |
| Engine | Yuchai national stage lll emission standards |
| Rated Power | 73.5kw @2200r/min |
| Recommended Operating Speed | 1500r/min |
| Transport dimensions (LxWxH) | 7000*2300*2760mm |
| Weight | 8100kg (Excluding drilling tools) |
